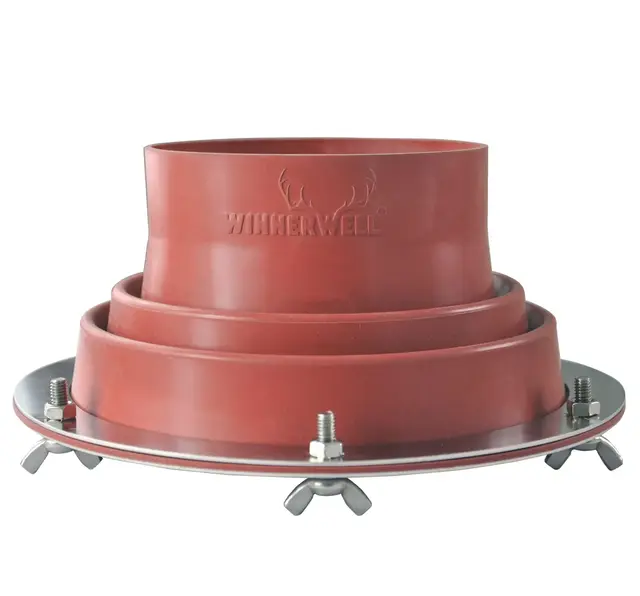

Designed to fit perfectly with the Winnerwell Triple-wall Heat Protector Chimney 2.1", Winnerwell Triple-wall Heat Protector Chimney 2.5" and Winnerwell Heat Protector Chimney G2 3.5'', the Winnerwell® Flashing Kit is made from silicone which resists the temperature of 240? and is held in place by stainless steel rings with six wing nuts. This Flashing Kit can be used to create a weather-tight seal on existing stove jacks or when installing a stove jack in a tent or shelter.
WARNING: The Flashing Kit must be used with Winnerwell Triple-wall Heat Protector Chimney 2.1", Winnerwell Triple-wall Heat Protector Chimney 2.5" or Winnerwell Heat Protector Chimney G2 3.5''. There is a risk of melting if install the Flashing Kit on stove pipe directly.
Features
? Compatible with Winnerwell Triple-wall Heat Protector Chimney 2.1", Winnwell Triple-wall Heat Protector Chimney 2.5" and Winnerwell Heat Protector Chimney G2 3.5''
? Made with silicone to resist high temperatures, creates a tight seal around the pipe, and provides flexibility
? Stainless steel rings and 6 wing nuts hold the Flashing Kit in place
? Use with existing stove jacks or when installing a stove jack in a tent or shelter
Specification
Material: Silicone collar + Stainless steel rings
Inner Diameter: 122mm / 4.8in
Outer Diameter: 220mm / 8.7in
Height: 92mm / 3.6in
Net Weight: 0.53kg / 1.17lbs
Winnerwell Flashing Kit must be installed at the position below the 5th row of the holes of the Winnerwell Heat Protector Chimney. If there’s an installation angle, please must make sure that any position of the Silicone part of the Winnerwell Flashing Kit must below the 5th row of these holes as well. We recommend to purchase Winnerwell® Short Pipes separately for height adjustment to meet the above specified position requirement.
WARNING: Temperature at the top part of the Heat Protector Chimney is high, the Silicone part must avoid the position of the upper cooling holes.
